H Frame Pneumatic Power Press

High-Precision H Frame Pneumatic Power Press for Efficient Metal Forming

The H Frame Pneumatic Power Press is a highly efficient and durable machine engineered for precision metal forming and stamping applications.

Its rigid H-frame construction ensures exceptional stability, enabling consistent performance across a wide range of operations, including punching, bending, and embossing.

Powered by advanced pneumatic technology, it offers rapid cycling times, reduced energy consumption, and reliable force control.

The ergonomic design incorporates safety features like overload protection and emergency stops, ensuring operator safety during high-speed operations.

With its customizable bed size, stroke length, and tonnage, this power press is the ideal choice for industries such as automotive, electronics, and metal fabrication, delivering unmatched productivity and performance.

Product Specification

Daylight Opening: 150 mm to 800 mm

Capacity: 5 to 200 Tons (customizable)

Frame Type: Rigid H-Frame Construction

Stroke Length: 50 mm to 400 mm

Bed Size: 500 mm x 300 mm to 1200 mm x 800 mm

Ram Speed:
Approach Speed: 80 to 200 mm/sec
Pressing Speed: 10 to 60 mm/sec
Return Speed: 100 to 250 mm/sec

Pneumatic System Pressure: 5 to 10 bar

Control System: Microcontroller or PLC-based with push-button or HMI interface

Safety Features

Overload Protection
Emergency Stop Button
Mechanical or Pneumatic Clutch Brake
Safety Guard/Light Curtain

Motor Power: 2 HP to 15 HP (depending on capacity)

Air Tank Capacity: 50 to 200 liters

Noise Level: Below 80 dB for safe operation

Material Feed System: Manual, semi-automatic, or fully automatic feed options available

Weight: 1 Ton to 8 Tons (depending on model)

Optional Features

Die Cushion System
Automatic Lubrication
Variable Stroke Adjustment

Compliance: ISO and CE certified for quality and safety

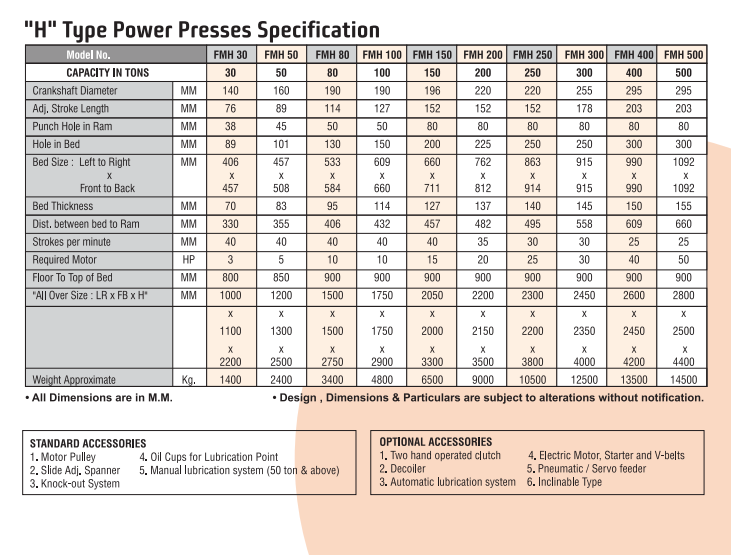

Technical Specification

Model No.		FMH-30	FMH-50	FMH-80	FMH-100	FMH-150	FMH-200	FMH-250	FMH-300	FMH-400	FMH-500
CAPACITY IN TONS		30	50	80	100	150	200	250	300	400	500
Crankshaft Diameter	MM	140	160	190	190	196	220	220	255	295	295
Adj. Stroke Length	MM	76	89	114	127	152	152	152	178	203	203
Punch Hole in Ram	MM	38	45	50	50	80	80	80	80	80	80
Hole in Bed	MM	89	101	130	150	200	225	250	250	300	300
Bed Size (Left to Right x Front to Back)	MM	406 x 457	457 x 508	533 x 584	609 x 660	660 x 711	762 x 812	863 x 914	915 x 915	990 x 990	1092 x 1092
Bed Thickness	MM	70	83	95	114	127	137	140	145	150	155
Dist.between bed to Ram	MM	330	355	406	432	457	482	495	558	609	660
Stroke per minute	MM	40	40	40	40	40	35	30	30	25	25
Required Motor	HP	3	5	10	10	15	20	25	30	40	50
Floor To Top of Bed	MM	880	850	900	900	900	900	900	900	900	900
All Over Size LR x FB x H	MM	1000 x 1100 x 2200	1200 x 1300 x 2500	1500 x 1500 x 2750	1750 x 1750 x 2900	2050 x 2000 x 3300	2200 x 2150 x 3500	2300 x 2200 x 3800	2450 x 2350 x 4000	2600 x 2450 x 4200	2800 x 2500 x 4400
Weight Approximate	Kg.	1400	2400	3400	4800	6500	9000	10500	12500	13500	14500

All Dimensions are in M.M.
Design, Dimensions & Particulars are subject to alterations without notifications.
