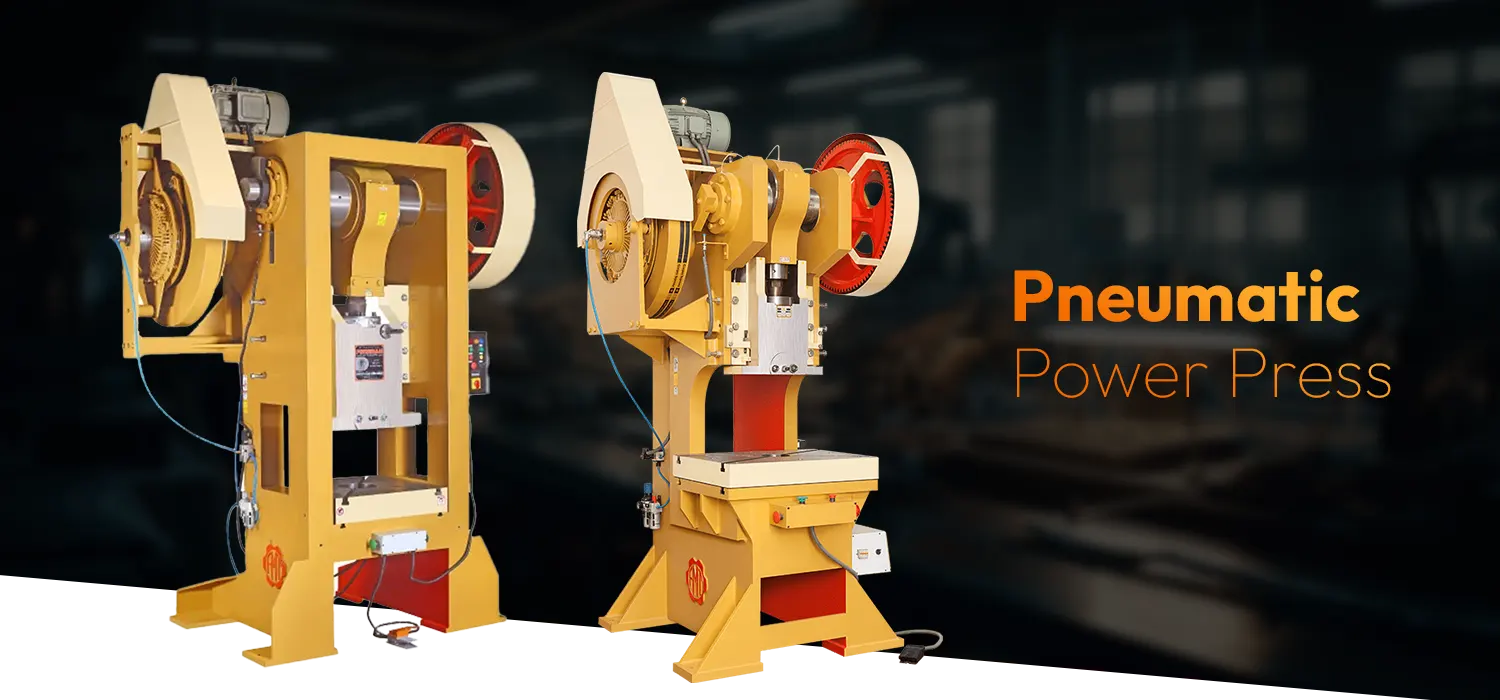

Standard Accessories
- Two Hand Push Button Controlled
- Operator Control Panel Board (Off, Inch, Single & Continues Stock)
- Foot Switch Operation
- Manual Lubrication System
Optional Accessories
- The Clutch is made of special alloy steel, The pin
- rolling key is manufactured from W.P.S.
- EN24 material & with proper heat treatment to ensure trouble free long life & give continues stroke for mass production.
| Model No. | FNC-30 | FNC-40 | FNC-50 | FNC-60 | FNC-80 | FNC-100 | FNC-150 | FNC-200 | |
|---|---|---|---|---|---|---|---|---|---|
| CAPACITY IN TONS | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | |
| Crankshaft Diameter | MM | 140 | 145 | 160 | 170 | 190 | 196 | 220 | 230 |
| Adj. Stroke Length | MM | 76 | 76 | 89 | 101 | 114 | 127 | 152 | 152 |
| Ram Face Size | MM | 317 x 140 | 342 x 152 | 368 x 165 | 393 x 177 | 444 x 190 | 495 x 203 | 622 x 241 | 750 x 292 |
| Adjustment of Ram | MM | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Punch Hole in Ram | MM | 38 | 38 | 45 | 45 | 50 | 50 | 80 | 80 |
| Hole in Bed | MM | 89 | 95 | 101 | 115 | 130 | 150 | 200 | 225 |
| Bed Size (Left to Right x Front to Back) | MM | 585 x 355 | 635 x 355 | 685 x 406 | 712 x 457 | 736 x 508 | 890 x 610 | 1041 x 737 | 1092 x 812 |
| Bed Thickness | MM | 70 | 76 | 83 | 88 | 95 | 114 | 127 | 137 |
| Dist.between bed to Ram | MM | 330 | 330 | 355 | 381 | 406 | 432 | 457 | 482 |
| Flywheel Weight | Kg. | 135 | 175 | 235 | 325 | 365 | 410 | 500 | 850 |
| Stroke per minute | MM | 50 | 50 | 50 | 50 | 50 | 40 | 40 | 35 |
| H.P.Required | – | – | – | – | – | – | – | – | – |
| For Geared (1440 RPM) | HP | 3 | 5 | 5 | 7.5 | 10 | 10 | 15 | 20 |
| For Ungeared (960 RPM) | HP | 5 | – | – | – | – | – | – | – |
| Air Pressure Require | BAR | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Floor To Top of Bed | MM | 880 | 850 | 850 | 900 | 900 | 900 | 900 | 900 |
| All Over Size LR x FB x H | MM | 1000 x 1100 x 2200 | 1100 x 1200 x 2400 | 1200 x 1300 x 2500 | 1300 x 1350 x 2650 | 1500 x 1500 x 2750 | 1750 x 1750 x 2900 | 2050 x 2000 x 3300 | 2200 x 2150 x 3500 |
| Weight Approximate | Kg. | 1500 | 1900 | 2500 | 2700 | 3500 | 5000 | 6600 | 9000 |
All Dimensions are in M.M.
Design , Dimensions & Particulars are subject to alterations without notification.
