C Frame Pneumatic Power Press

High-Performance C Frame Pneumatic Power Press for Precise and Reliable Operations

The C Frame Pneumatic Power Press is a robust and versatile machine designed for high-precision metal forming, cutting, and punching tasks.

Its durable C-frame structure ensures exceptional stability and reduced vibrations, enabling smooth and accurate operations.

Equipped with advanced pneumatic technology, it delivers consistent pressure for optimal performance and efficiency.

This power press is ideal for various industrial applications, offering ease of use, enhanced safety features, and low maintenance requirements.

Built with premium-grade materials, it ensures long-lasting durability and reliable performance, making it a perfect choice for demanding manufacturing environments.

Product Specification

Standard Accessories

Two Hand Push Button Controlled
Operator Control Panel Board
Foot Switch Operation
Manual Lubrication System
Stroke Counter

Optional Accessories

Motorized Lubrication System
Pneumatic Balance Cylinder
Photo Safety Sensor
Hydraulic Overload Safety Device
Die Cushion
Decoiler
Pneumatic / Servo Feeder

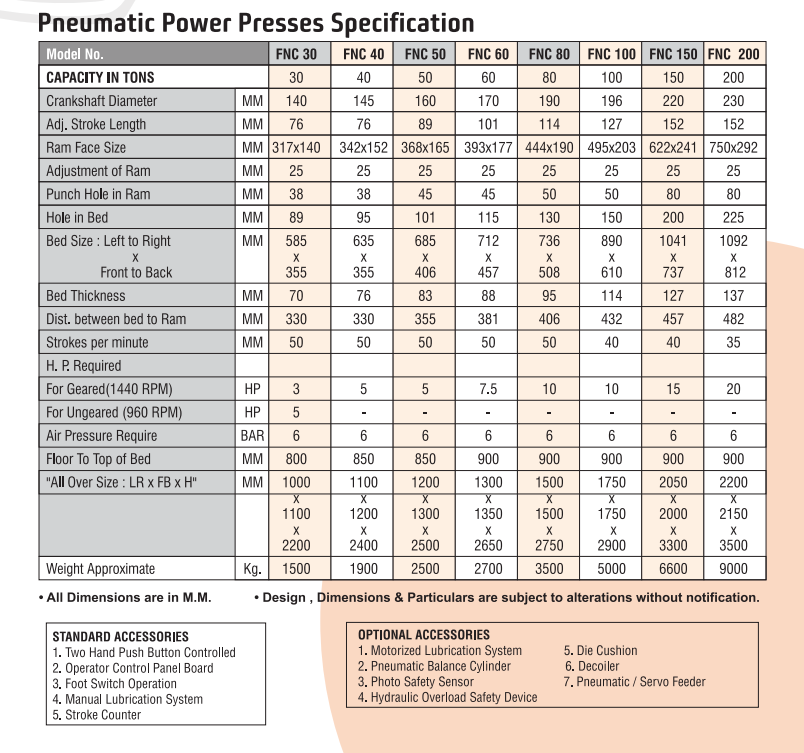

Technical Specification

Model No.		FNC-30	FNC-40	FNC-50	FNC-60	FNC-80	FNC-100	FNC-150	FNC-200
CAPACITY IN TONS		30	40	50	60	80	100	150	200
Crankshaft Diameter	MM	140	145	160	170	190	196	220	230
Adj. Stroke Length	MM	76	76	89	101	114	127	152	152
Ram Face Size	MM	317 x 140	342 x 152	368 x 165	393 x 177	444 x 190	495 x 203	622 x 241	750 x 292
Adjustment of Ram	MM	25	25	25	25	25	25	25	25
Punch Hole in Ram	MM	38	38	45	45	50	50	80	80
Hole in Bed	MM	89	95	101	115	130	150	200	225
Bed Size (Left to Right x Front to Back)	MM	585 x 355	635 x 355	685 x 406	712 x 457	736 x 508	890 x 610	1041 x 737	1092 x 812
Bed Thickness	MM	70	76	83	88	95	114	127	137
Dist.between bed to Ram	MM	330	330	355	381	406	432	457	482
Flywheel Weight	Kg.	135	175	235	325	365	410	500	850
Stroke per minute	MM	50	50	50	50	50	40	40	35
H.P.Required	–	–	–	–	–	–	–	–	–
For Geared (1440 RPM)	HP	3	5	5	7.5	10	10	15	20
For Ungeared (960 RPM)	HP	5	–	–	–	–	–	–	–
Air Pressure Require	BAR	6	6	6	6	6	6	6	6
Floor To Top of Bed	MM	880	850	850	900	900	900	900	900
All Over Size LR x FB x H	MM	1000 x 1100 x 2200	1100 x 1200 x 2400	1200 x 1300 x 2500	1300 x 1350 x 2650	1500 x 1500 x 2750	1750 x 1750 x 2900	2050 x 2000 x 3300	2200 x 2150 x 3500
Weight Approximate	Kg.	1500	1900	2500	2700	3500	5000	6600	9000

All Dimensions are in M.M.
Design, Dimensions & Particulars are subject to alterations without notifications.
