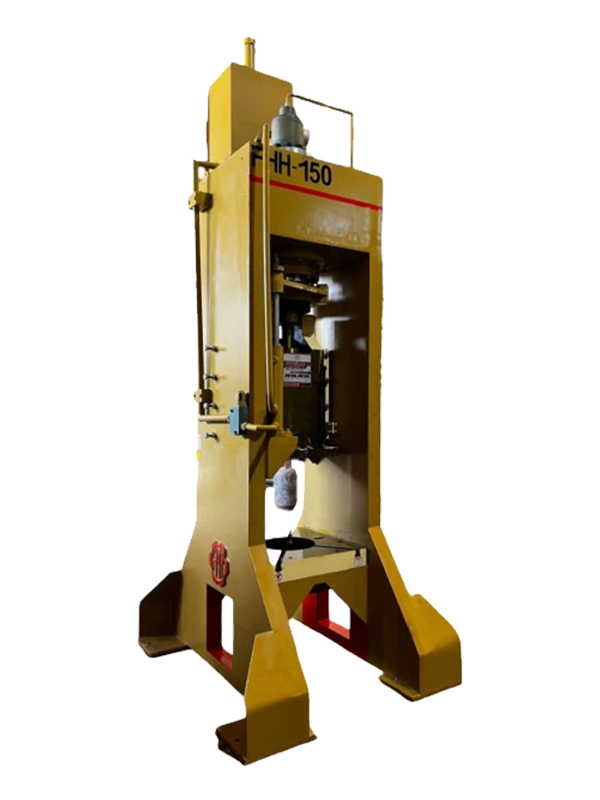

H Frame Hydraulic Power Press


High-Performance H Frame Hydraulic Power Press for Precise Metalworking

The H Frame Hydraulic Power Press is a robust, high-performance machine designed for heavy-duty metalworking applications.

Its sturdy H-frame structure ensures stability and durability, making it ideal for tasks such as bending, punching, drawing, and pressing with unmatched precision.

Equipped with advanced hydraulic systems, it delivers consistent power, superior efficiency, and reduced energy consumption.

The ergonomic design enhances operational safety, while its easy-to-use controls provide optimal performance for both small and large-scale projects.

Perfect for automotive, aerospace, and industrial manufacturing industries, this power press is a reliable solution for all your pressing need.

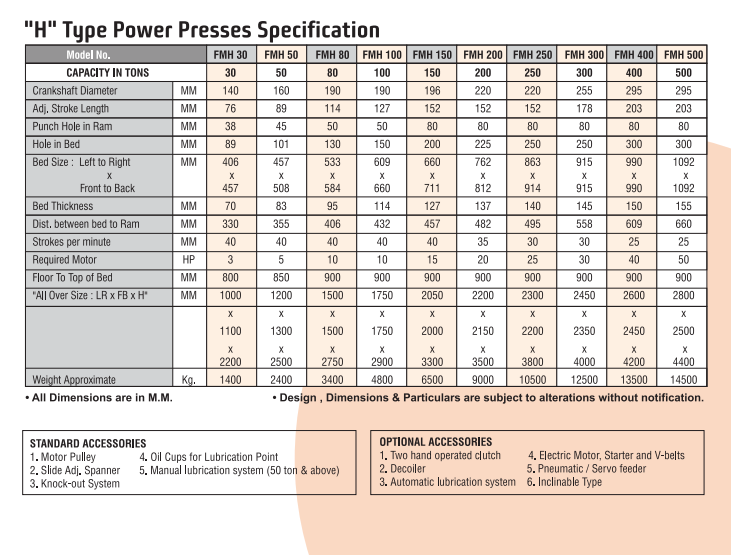

Product Specification

Daylight Opening: 200 mm to 1000 mm

Capacity: 10 to 300 Tons (customizable)

Frame Type: Rigid H-Frame Construction

Stroke Length: 100 mm to 500 mm

Bed Size: 600 mm x 400 mm to 1500 mm x 1000 mm

Ram Speed:

Approach Speed: 100 to 250 mm/sec

Pressing Speed: 5 to 50 mm/sec

Return Speed: 100 to 200 mm/sec

Power Pack Unit: High-efficiency hydraulic pump with a capacity of 5 to 30 HP

Motor: 3 Phase, 415V, 50 Hz, TEFC motor

Control System: PLC-based with touchscreen HMI for precision operation

Safety Features: Overload protection, emergency stop, and light curtains

Oil Tank Capacity: 50 to 300 liters

Accuracy: ± 0.1 mm for high precision operations

Weight: Varies based on capacity (2 to 10 Tons approx.)

Optional Features:

Die cushion system

Ejection cylinder

Automatic lubrication system

Compliance: ISO and CE certified for safety and quality standard
