H Frame Mechanical Power Press


Key Features:

  1. Frame: The frame is fabricated from solid steel plate with heavy cross ribbing. The structure is designed for perfectly balanced distribution of stress over the cross-section, eliminating deflection and vibration, resulting in increased tool and machine life.

  2. Clutch: The clutch is made of EN8D/EN9. The rolling key is manufactured from EN24 material and heat-treated for trouble-free long life and continuous stroke for mass production.

  3. Crank Shaft: The crankshaft is made of EN8D/EN9, precisely machined to grind finish, and fitted in bronzed bushes for smooth working, longer life, and accuracy.

  4. Adjustable Stroke: The unique feature of adjustable stroke enables the press to perform all kinds of operations by employing short stroke for blanking and forming operations.

  5. Flywheel: Properly sized flywheel made of high-grade cast iron for storing and releasing adequate energy for pressing operations, ensuring smooth running.

  6. Gears: Gears are made of steel cast or fabricated. Gear teeth are generated by precision hobbing machines.

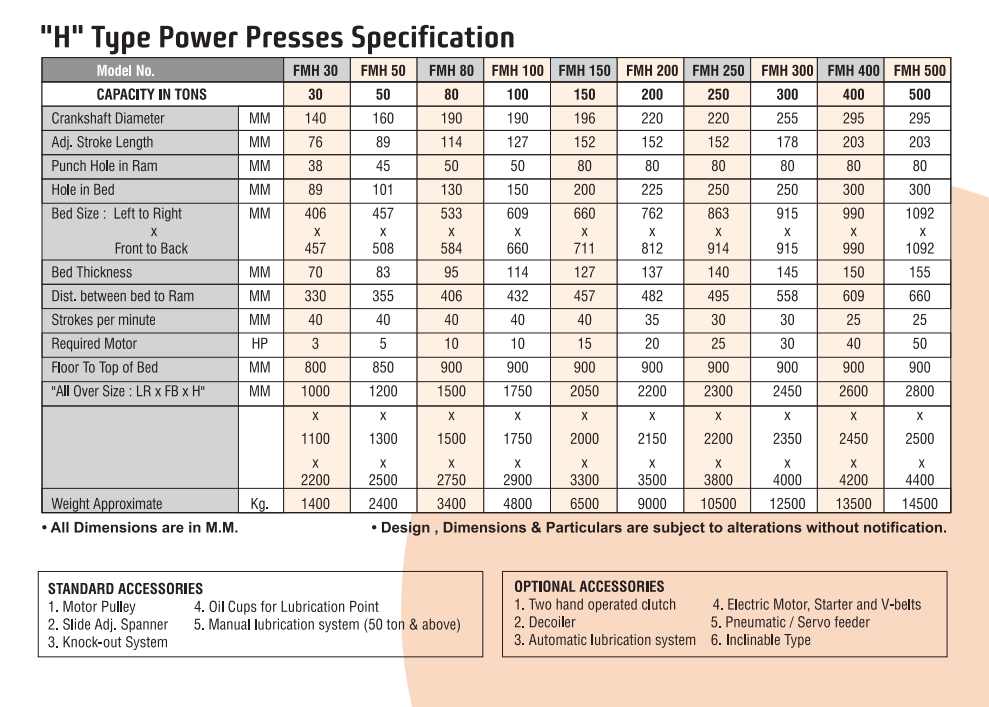

Product Specification

FMT® Brand Heavy Duty Mechanical Power Presses are coming in PILLAR/"H" frame versions from 30 ton to 500 ton capacity in the most economical type of construction with several standard/optional features such as:

  • Manual/Auto lubrication systems
  • Knockouts
  • Electronics safety
  • Single/Double or Un-geared versions
  • Pneumatic feeders/straightness & decoilers for automatic purposes

Standard Accessories

  1. Motor Pulley
  2. Slide Adj. Spanner
  3. Knock-out System
  4. Oil Cups for Lubrication Point
  5. Manual Lubrication System (50 ton & above)

Optional Accessories

  1. Two Hand Operated Clutch
  2. Decoiler
  3. Automatic Lubrication System
  4. Electric Motor, Starter, and V-Belts
  5. Pneumatic / Servo Feeder
  6. Inclined Type
