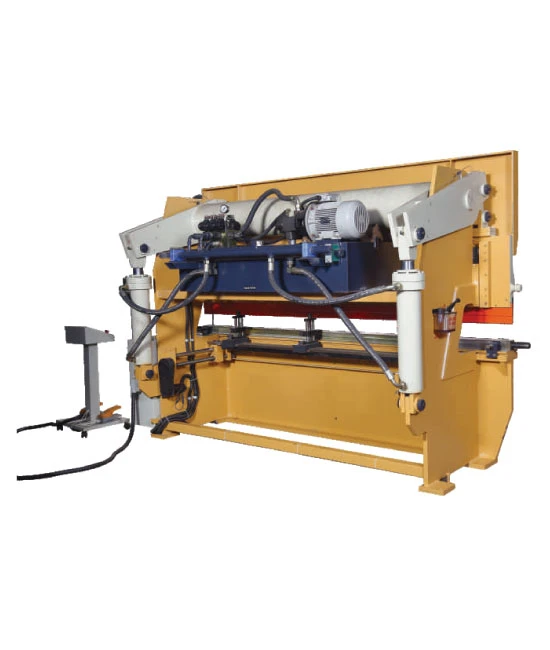

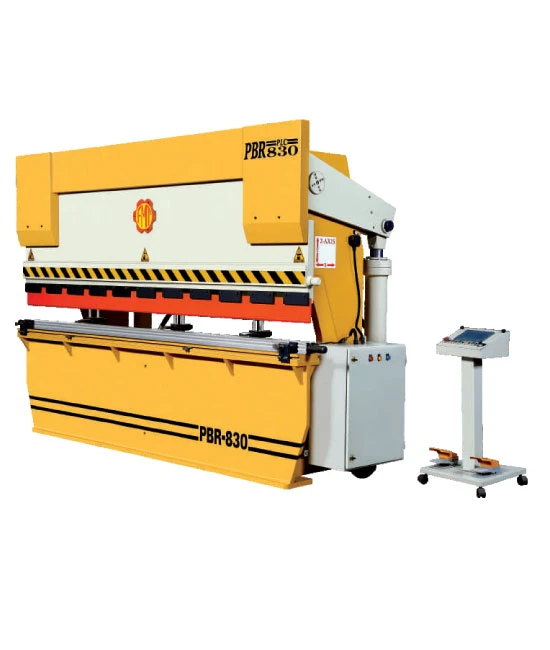

Hydraulic Press Brake Machine
Standard Features for Basic Model
Ram travel repeatable within +0.03mm for consistent bends for interchangeable output.
Ram travel is referenced from the bed to avoid side frame deflections affecting stroke accuracy.
Rugged structure from ultra-tested IS 2062 plates, rigidity conforming to international standards.
Hydraulic, electrical of internationally reputed brands for consistent performance and reliable operation.
Front-operated manually backed gauge, front sheet support with scale.
Most hydraulic parts are rated for 310 bar but working pressure only 160 bar for long life, reliable operation.
Ram guides of 4-piece design with replaceable liners.
Pivots with permanently lubricated bearings or hardened parts lubricated by central hand pump cylinders of ultra-tested seamless honed tubes, hard chrome-plated pistons, dual seals (Teflon ring plus set of chevron packing) for extra reliability.

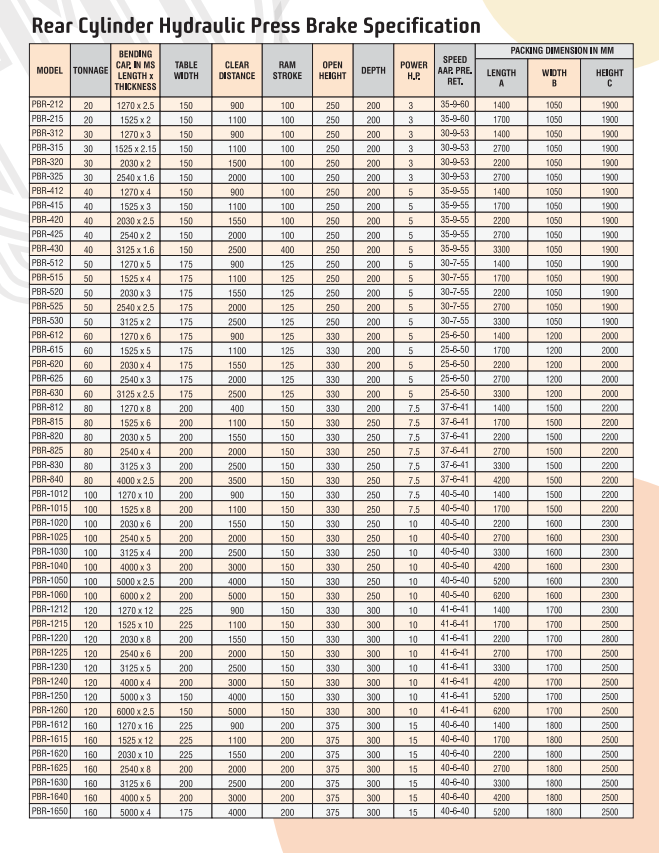

Product Specification
Standard Accessories
Electric Motor ABB / Siemens
Control Panel with Selection of Inch-Once-Auto Mode of Operation
Foot Switch Fine Stroke Adjustment Rod with Limit Switch
Front Side Sheet Support
Manually Back Gauge - 750 mm
Hydraulic System - Pump & Valve Yuken Make
Control Panel - Auto-One-Inch Cycle
Standard V-Block & V-Punch
Manual Lubrication
Instruction Manual
Optional Accessories
Motorize Back Gauge with D.R.O.
NC Back Gauge
NC Control Y Axises
Goose Neck Punch
Die & Punch
