80 Ton C Frame Mechanical Power Press

In Stock
Price: ₹ 738,000 (Price is including tax)
SKU:

High-Performance 80 Ton C Frame Mechanical Power Press – Precision & Durability

The 80 Ton C Frame Mechanical Power Press is designed for high-capacity metal stamping, punching, and forming applications. Built with a robust C-frame structure, it offers superior strength, minimal deflection, and long-lasting durability.

Featuring a high-performance flywheel, precision clutch, and advanced braking system, it ensures smooth operation with enhanced safety. The user-friendly control panel allows easy adjustments for improved productivity. Ideal for industrial metal fabrication, this power press delivers accuracy, efficiency, and reliability.

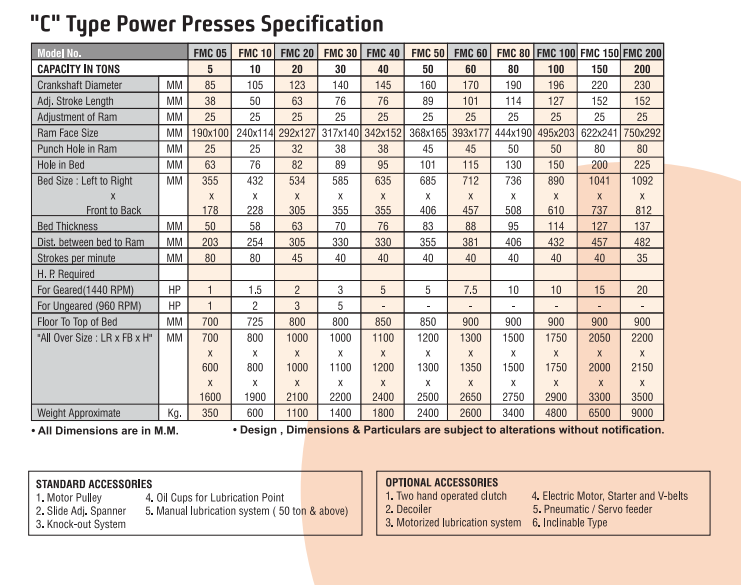

Product Specification

Frame: Fabricated from solid steel plate with heavy cross ribbing for balanced stress distribution, eliminating deflection and vibration, increasing tool and machine life.

Clutch: Made of EN8D/EN9 with a rolling key manufactured from EN24 material, heat-treated for long life and continuous stroke in mass production.

Crank Shaft: Constructed from EN8D/EN9, precisely machined, grind finished, and fitted in bronzed bushes for smooth operation, accuracy, and extended life.

Adjustable Stroke: Allows for versatile operations with short strokes for blanking and forming.

Flywheel: Made of high-grade cast iron, designed to store and release energy efficiently, ensuring smooth running.

Gears: Precision hobbing-generated gear teeth, made from steel cast or fabricated material for durability.

Ram Slide: Manufactured from seasonal high-grade casting, ensuring friction-free travel and longer die life.

Bed: Constructed from high-grade heavy-duty cast iron, properly seasoned and aligned for precise press operation.

Lubrication: Oil cups and grease points provided; manual lubrication system for 50-ton and above, with an optional automatic system.
