100 Ton H Frame Mechanical Power Press
In StockHeavy-Duty 100 Ton H Frame Mechanical Power Press – Precision & High Performance
The 100 Ton H Frame Mechanical Power Press is designed for high-precision metal stamping, punching, and forming applications. Its strong H-frame structure ensures superior stability, minimal deflection, and long-lasting durability.
Equipped with a high-performance flywheel, precision clutch, and advanced braking system, it delivers smooth, controlled, and safe operation. The user-friendly control panel enables easy adjustments, optimizing productivity and efficiency. Built for industrial applications, this power press ensures accuracy, reliability, and minimal maintenance, making it an ideal solution for heavy-duty metal fabrication need.

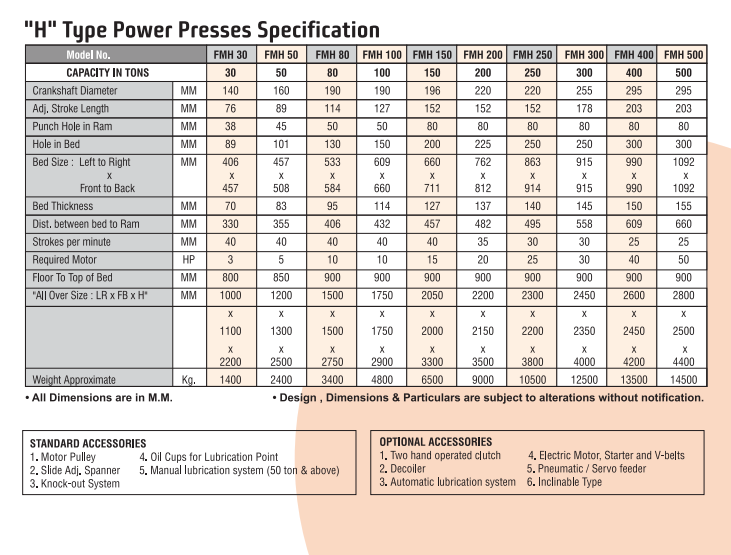

Product Specification
FMT® Brand Heavy Duty Mechanical Power Presses are coming in PILLAR/"H" frame versions from 30 ton to 500 ton capacity in the most economical type of construction with several standard/optional features such as:
- Manual/Auto lubrication systems
- Knockouts
- Electronics safety
- Single/Double or Un-geared versions
- Pneumatic feeders/straightness & decoilers for automatic purposes
Standard Accessories
- Motor Pulley
- Slide Adj. Spanner
- Knock-out System
- Oil Cups for Lubrication Point
- Manual Lubrication System (50 ton & above)
Optional Accessories
- Two Hand Operated Clutch
- Decoiler
- Automatic Lubrication System
- Electric Motor, Starter, and V-Belts
- Pneumatic / Servo Feeder
- Inclined Type
